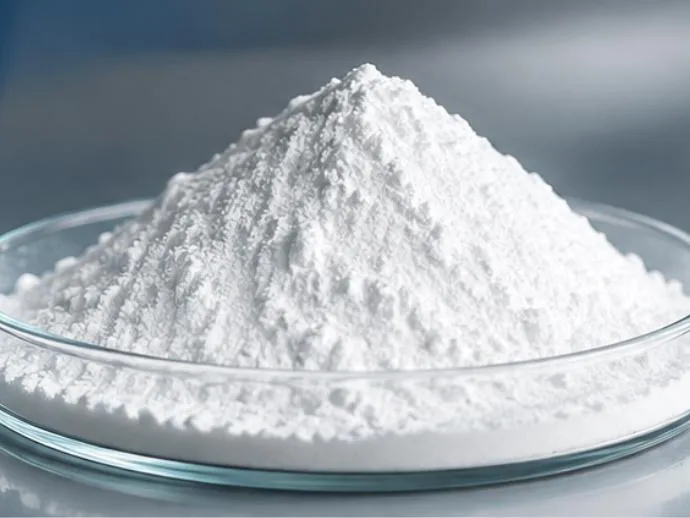

Micronized calcite, 1 µm
Natural ground calcium carbonate from a pure, white Turkish calcite deposit. 99.4% CaCO₃, L* whiteness 98, D50 of 1.8 µm. Available uncoated, or stearic-acid coated for plastics and PVC. Other particle sizes are ground to order.
Chemical properties
| Component | Value |
|---|---|
| CaCO₃ | 99.40% ± 0.2 |
| MgO | 0.40% max |
| Fe₂O₃ | 0.03% max |
| SiO₂ | 0.01% max |
| HCl-insoluble content | 0.04% max |
Particle size
| Laser diffraction (Sympatec Helos) | Value |
|---|---|
| D50 | 1.8 µm |
| D97 | 8.0 µm |
| Under 2 µm | ≥ 55% |
| Residue on 45 µm sieve (ISO 787/7) | ≤ 0.01% |
Physical properties
| Property | Method | Value |
|---|---|---|
| Whiteness L* | CIELAB, DIN 6174 | 98 ± 1 |
| a* / b* | CIELAB, DIN 6174 | ≤ 0.15 / ≤ 1.10 |
| Brightness | C/2°, DIN 53163 | 97 ± 1% |
| Density | ISO 787/10 | 2.7 g/cm³ |
| Packed bulk density | ISO 787/11 | 0.75 g/ml |
| Hardness | — | 3 Mohs |
| pH | ISO 787/9 | 9 |
| Moisture, ex works | ISO 787/2 | 0.2% |
| Oil absorption | ISO 787/5 | 18 g/100 g |
| DOP absorption | ISO 787/5 | 34 g/100 g |
Producer's specification. The analysis of your lot is sent with the sample and again with each shipment. Stearic-acid coated grade and other particle sizes: see the grades above.
Uncoated, 1 µm
The standard grade on this page. For water-based paint, paper, sealants, rubber and general compounding where the filler must stay hydrophilic.
Stearic-acid coated, 1 µm
Same calcite, surface-treated with stearic acid. The hydrophobic coating disperses faster in polymer melts, lowers moisture pick-up and gives the finished plastic a water-repellent surface. The grade PVC, polyolefin and masterbatch producers ask for.
Other particle sizes
Coarser cuts (for example 3, 5, 10 or 20 µm D50) and custom top-cut limits are ground on request, coated or uncoated. Send us your target D50/D97 and we quote against volume.
Where it is used
- Architectural and industrial paint. Extender with high whiteness and low oil absorption; fine enough for semi-gloss systems.
- PVC pipe, profile and fittings. The coated grade for rigid PVC: better dispersion, higher loading, dry water-repellent surface.
- Plastics and masterbatch. Coated grade for PP and PE compounds, films and sheet; uncoated where the formulation already carries a dispersant.
- Wire and cable. Filler for PVC and halogen-free insulation and sheathing compounds.
- Rubber, sealants, adhesives. Reinforcing and volume filler.
- Paper. Filler and coating pigment.
Packaging and supply
- Bags
- 25 kg ± 2% kraft or PP bags on pallets
- Big bags
- [BIG BAG WEIGHT] kg
- Minimum order
- [MOQ] · trial pallets available
- HTS code
- 2836.50.0000
- Documents
- TDS, SDS (OSHA HazCom), lot certificate of analysis
- Delivery
- DAP or DDP, continental U.S.
